Thinking about changing a bushing? Why not replace them all? Energy Suspension Master Kits include the bushings you need to completely revamp your suspension.

Fitment Information

Lexus IS300 (2001, 2002, 2003, 2004, 2005)
- 2JZ Engine

Specs & Features

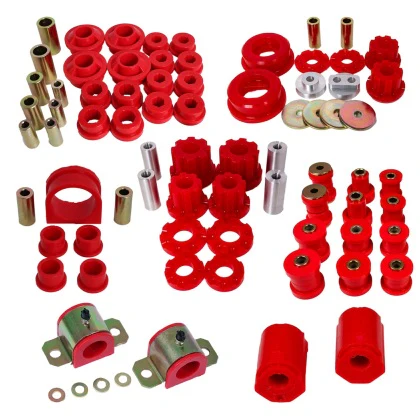

Complete front and rear bushing kit - grease included!
Kit 8.3141 - Front Control Arm Bushing Set
- 2 of 03P03664 - Vertical Control Arm Bushings
- 2 of 15P1075639 - Metal Sleeves - 1.250 x .875 x 2.550
- 4 of 03P03658 - Lower Control Arm Bushings
- 2 of 15P1075739 - Metal Sleeves - 1.00 x .562 x 2.185
- 4 of 03P03659 - Upper Inner Control Arm Bushings
- 4 of 03P03660 - Upper Outer Control Arm Bushings
- 4 of 15P1075839 - Metal Sleeves - .750 x .412 x 1.903
Kit 8.5151 - Front Sway Bar Bushing Set
- 2 of 15.12.39.39 - Greaseable Multi Bracket
- 4 of 15.03.41.39 - Metal Washers - .688 x .312 x .080
- 2 of 5341 - Sway Bar Bushings
Kit 8.3140 - Rear Control Arm Bushing Set
- 2 of 02P02974 - Control Arm Bushings
- 2 of 02P02975 - Control Arm Thrust Washer
- 2 of 02P02976 - Control Arm Bushings
- 2 of 02P02977 - Control Arm Bushings
- 4 of 02P02978 - Control Arm Bushings
- 4 of 02P02979 - Control Arm Bushings
- 4 of 02P02980 - Control Arm Bushings
- 2 of 03P03655 - Control Arm Bushings
- 2 of 03P03656 - Control Arm Bushings
- 4 of 15P0315339 - Metal Washers - 1.50 x .480 x .275
- 2 of 15.10.126.39 - Metal Sleeves - .750 x .480 x 2.125
- 4 of 15.10.137.39 - Metal Sleeves - .750 x .480 x 1.570
- 2 of 15.10.168.39 - Metal Sleeves - .875 x .562 x 2.150
- 2 of 15.10.476.39 - Metal Sleeves - .750 x .480 x 1.730
- 2 of 15P1075939 - Metal Sleeves - .875 x .563 x 2.300
Kit 8.5149 - Rear Sway Bar Bushin Set
- 2 of 05P06106 - Sway Bar Bushings
Kit 8.4115 - Rear Subframe Bushing Set
- 2 of 04P04445 - Subframe Bushings
- 2 of 04P04446 - Subframe Bushings
- 2 of 04P04447 - Subframe Bushings
- 2 of 04P04448 - Subframe Bushings
- 2 of 15P1076138 - Aluminum Sleeves - 1.500 x 1.063 x .625
- 2 of 15P1076238 - Aluminum Sleeves - 1.250 x .688 x 3.220
Kit 8.1107 - Differential Bushing Set
- 2 of 01P01377 - Differential Bushings
- 2 of 01P01378 - Differential Bushings
- 1 of 01P01379 - Differential Bushing
- 1 of 01P01380 - Differential Bushing
- 2 of 15.03.24.39 - Metal Washer - 2.50 x .625 x .188
- 2 of 15.03.27.39 - Metal Washer - 2.50 x .500 x .188
- 1 of 15P0815938 - Bushing Retainer
- 1 of 15P0816039 - Bushing Retainer
- 2 of 15P1074439 - MEtal Sleeve - 1.000 x .640 x 2.530
Kit 8.10109 - Rack and Pinion Steering Bushing Set
- 1 of 10P10077 - Gromet
- 4 of 10P10078 - Bushings
- 2 of 15P1075539 - Metal Sleeves - .750" x .412" x 1.655"
Misc.
- 3 of 9.11113 - Grease Containers
- 1 of Energy Sticker

Part Numbers

Red: 8.18117R
Black: 8.18117G

Product Description

Positions and parts vary from vehicle to vehicle, but each package contains the bushings that Energy Suspension offers.

Energy Suspension's Hyperflex polyurethane is a firmer bushing than the O.E. Not only does this increase the longevity of the bushing but gives the suspension a boost in handling performance. With a firmer bushing, there will be a slight increase in NVH (noise, vibration and harshness), but most drivers prefer the boost in performance in spite of that. Replacing the entirety of your suspension bushings maximizes your handling and ensures it stays that way for a long time.

O.E. Manufacturer's use of soft rubber bushings when making a car. This is great for dampening noise and vibrations, but not so great for performance or longevity. Once the rubber fails, that quiet and smooth ride will fail as well. Rubber is prone to failure due to wear and tear, UV rays, road grimes, and vehicle oils.

This Package will come with plenty of Energy Suspension's own Formula 5 Bushing Lubricant. Using plenty of grease is the best way to ensure a long lasting part without any squeaking. So be sure to use more than enough lubricant when upgrading your suspension bushings.
