ACT Clutch Kit Ford Mustang 4.6L V8 (1996-2010) Twin Disc MaXX Xtreme Race Kit

Fitment Information

• Ford Mustang Bullitt 4.6L V8 (2008, 2009)

• Ford Mustang Bullitt 4.6L V8 (2001)

• Ford Mustang GT 4.6L V8 (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010)

• Ford Mustang Shelby GT 4.6L V8 (2007, 2008)

• Ford Mustang SVT Cobra 4.6L V8 (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)

Note

• T3R-F01- 8 Bolt w/ 10 Spline Transmission
• T3R-F02 - 6 Bolt w/ 10 Spline Transmission
• T3R-F03 - 8 Bolt w/ 26 Aftermarket Spline Transmission

• T3R-F04 - 6 Bolt w/ 26 Aftermarket Spline Transmission

Specs & Features

• Torque Capacity (ft/lbs.): 1496 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 336%

• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 10.5

• Clutch Disc Diameter (Millimeters): 267

• Input Shaft Diameter (inches): 1.0625
• SFI: 1.2

Product Description

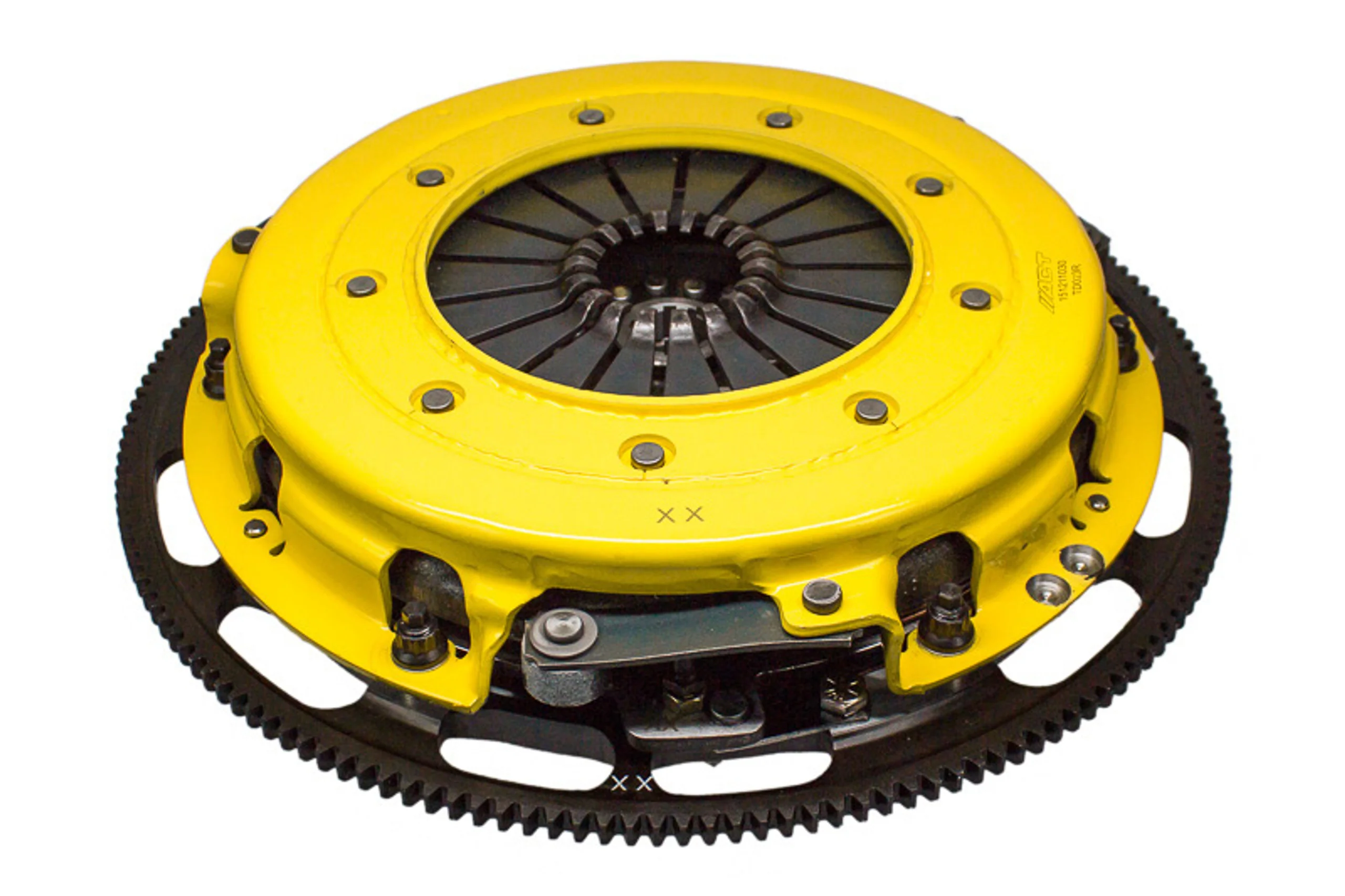

ACT's Twin Disc MaXX Xtreme Race Kit offers double the disc surfaces for enhanced wear resistance, heat tolerance, and extended lifespan compared to single disc kits. Featuring a unique Positive Lift Floater System design, these kits ensure quiet operation without any rattling or wearing posts. Each kit undergoes an exclusive four-stage heat treatment process, ensuring durability and reliability. With adjustable disc wear and consistent disengagement, ACT's twin disc provides optimal performance. The 6-pad rigid race discs utilize top-grade ceramic friction materials for superior quality, while the chrome-moly hub is heat-treated for added strength. Its lightweight, rigid construction enables swift shifts and hassle-free maintenance. Complete with a CNC-machined, dynamically balanced flywheel, ACT's twin disc kits guarantee seamless installation and operation. Each kit includes a pressure plate, two discs, a floater, flywheel, and alignment tool, with some variants offering additional accessories like pilot and release bearings.

ACT Twin Disc MaXX Xtreme Race Clutch Kit Features:

• Feel: Experience heavy to very heavy pedal effort with aggressive engagement, along with mild to moderate gear rattle.

• Life: Enjoy extended lifespan with disc surfaces doubled for better wear, increased heat capacity, and longer life, thanks to ACT's exclusive diaphragm design.

• Quality: Carefully engineered, precisely assembled, and accurately balanced, utilizing select ceramic friction materials for high heat tolerance and maximum performance.

• Recommended Use: This product is recommended for race use only, ensuring optimal performance in competitive environments.

• ACT Difference: Guaranteed reliability with 100% clamp load testing and dynamic computer balancing, ensuring smooth operation even at high RPMs.
