BD Diesel Xtrude Transmission Cooler Double Stacked [No Install Kit] 1300601-DS

BD Diesel Xtrude Transmission Cooler Double Stacked [No Install Kit] 1300601-DS

Fitment Information

  • Universal

Note

  • Exceeding the duty cycle may result in voiding the warranty. Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

Specs & Features

  • Cooler Assembly Only
  • Double stacked cores deliver over 40,000 BTU/HR of cooling
  • Over 350% temperature drop versus the factory system
  • 136% better temperature drop than XTRUDED single core kit
  • Motor is IP54 with 65% duty cycle

Warranty

  • Parts:  24 months  or 24, 000 Miles

    Product Description

    HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

        $217.19

        Original: $723.95

        -70%
        BD Diesel Xtrude Transmission Cooler Double Stacked [No Install Kit] 1300601-DS—

        $723.95

        $217.19

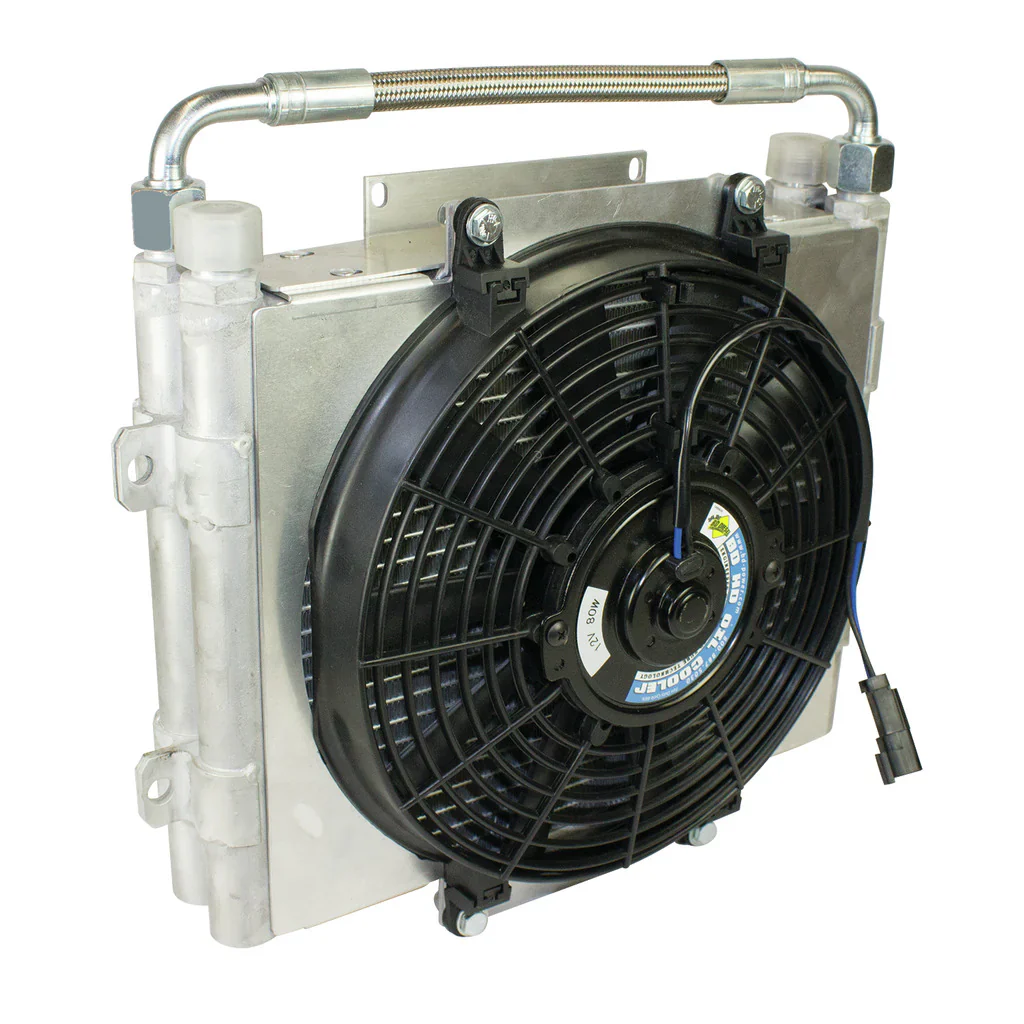

        Product image 1

        Description

        Fitment Information

        • Universal

        Note

        • Exceeding the duty cycle may result in voiding the warranty. Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

        Specs & Features

        • Cooler Assembly Only
        • Double stacked cores deliver over 40,000 BTU/HR of cooling
        • Over 350% temperature drop versus the factory system
        • 136% better temperature drop than XTRUDED single core kit
        • Motor is IP54 with 65% duty cycle

        Warranty

        • Parts:  24 months  or 24, 000 Miles

          Product Description

          HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.
