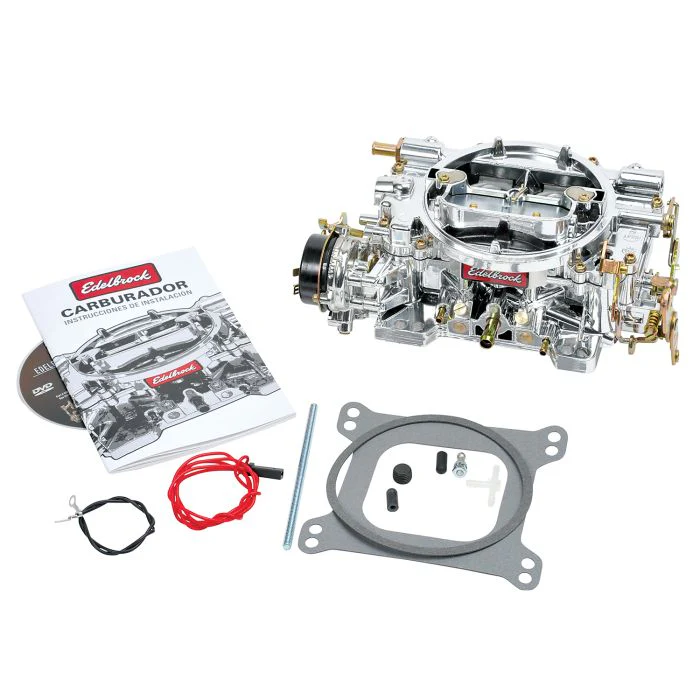

****Edelbrock Reman Performer Series Carburetor 140649 (600 CFM, Electric Choke, EnduraShine) Non-EGR
****Edelbrock Reman Performer Series Carburetor 140649 (600 CFM, Electric Choke, EnduraShine) Non-EGR
Specs
- Metering Rod Size .065 x .047 in
- Includes Gasket: Yes
- Barrel Quantity: 4 Barrel
- Flange Type: Square
- Main Venturi Diameter: 1.19
- Body Height: 3.25
- Bore Diameter: Primary Bore 1.44; Secondary Bore 1.69
- Spring Force: 5" Hg (Orange)
- Warranty: 3 Months
- Choke: Electric
- Marine Approved: No
- CFM: 600 cfm
- Primary Jet Diameter: 0.086
Install Notes
- Recommended cubic inch displacement for small block dual quad applications is 302-400+ c.i.d.; Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.; Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels
Description and Information
The Edelbrock 140649 Remanufactured Performer Series 600 CFM electric choke EnduraShine carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 140649 Remanufactured Performer Series 600 CFM electric choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.
Original: $527.95
-70%$527.95
$158.39
