Eibach Pro Truck Lift Kit for Ford F150 (21-25) Stage 1 / 2 / 2R / 3R / Front Springs Only

Fitment Information

• Ford F150 3.5L V6 EcoBoost / 5.0L 4WD (2021, 2022, 2023, 2024, 2025)

• Ford F150 TREMOR Super Crew  3.5L V6 EcoBoost / 5.0L 4WD (2021, 2022, 2023, 2024, 2025)

  • Super Crew Cab
  • Does not fit models with CCD Electronic Suspension

Stages

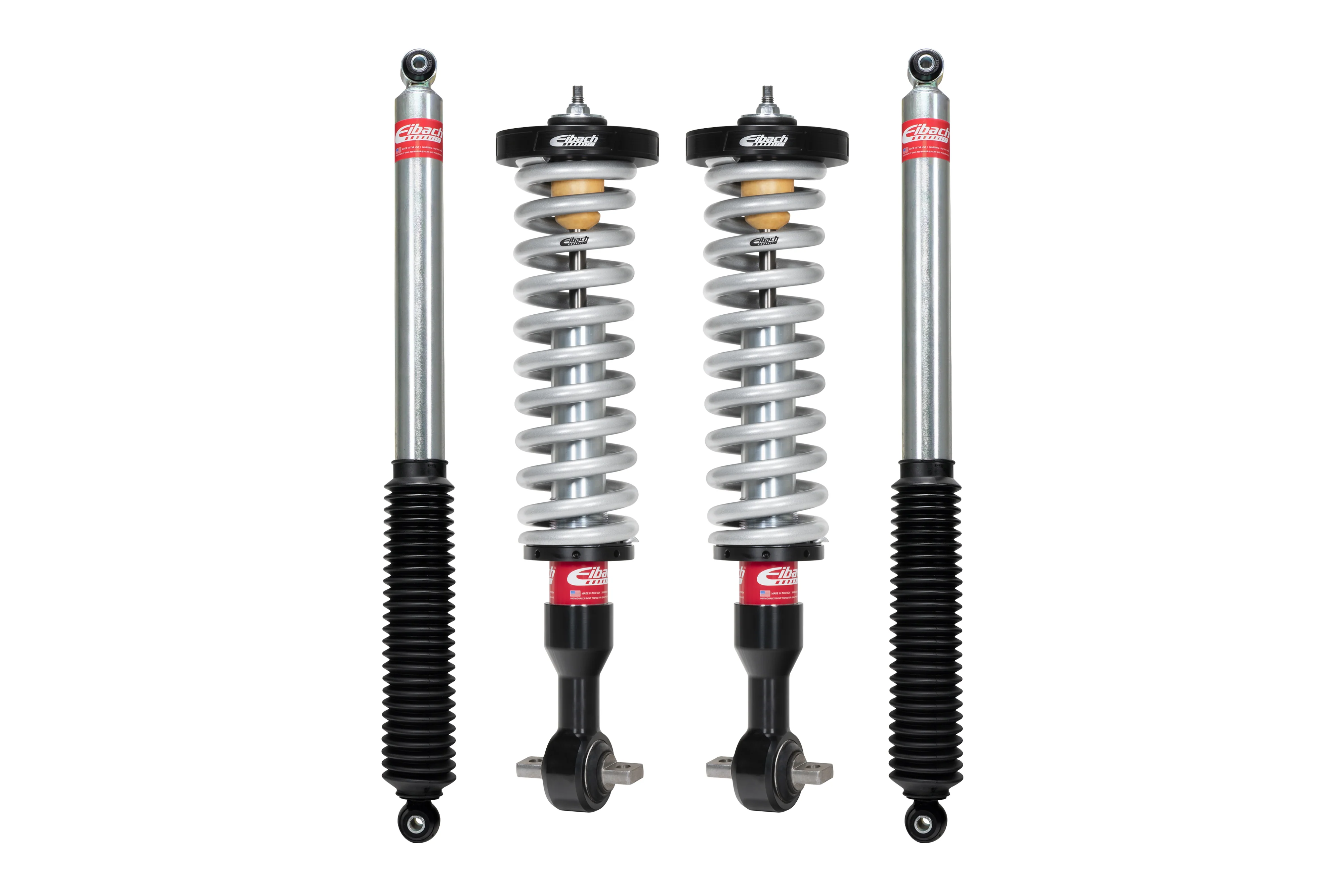

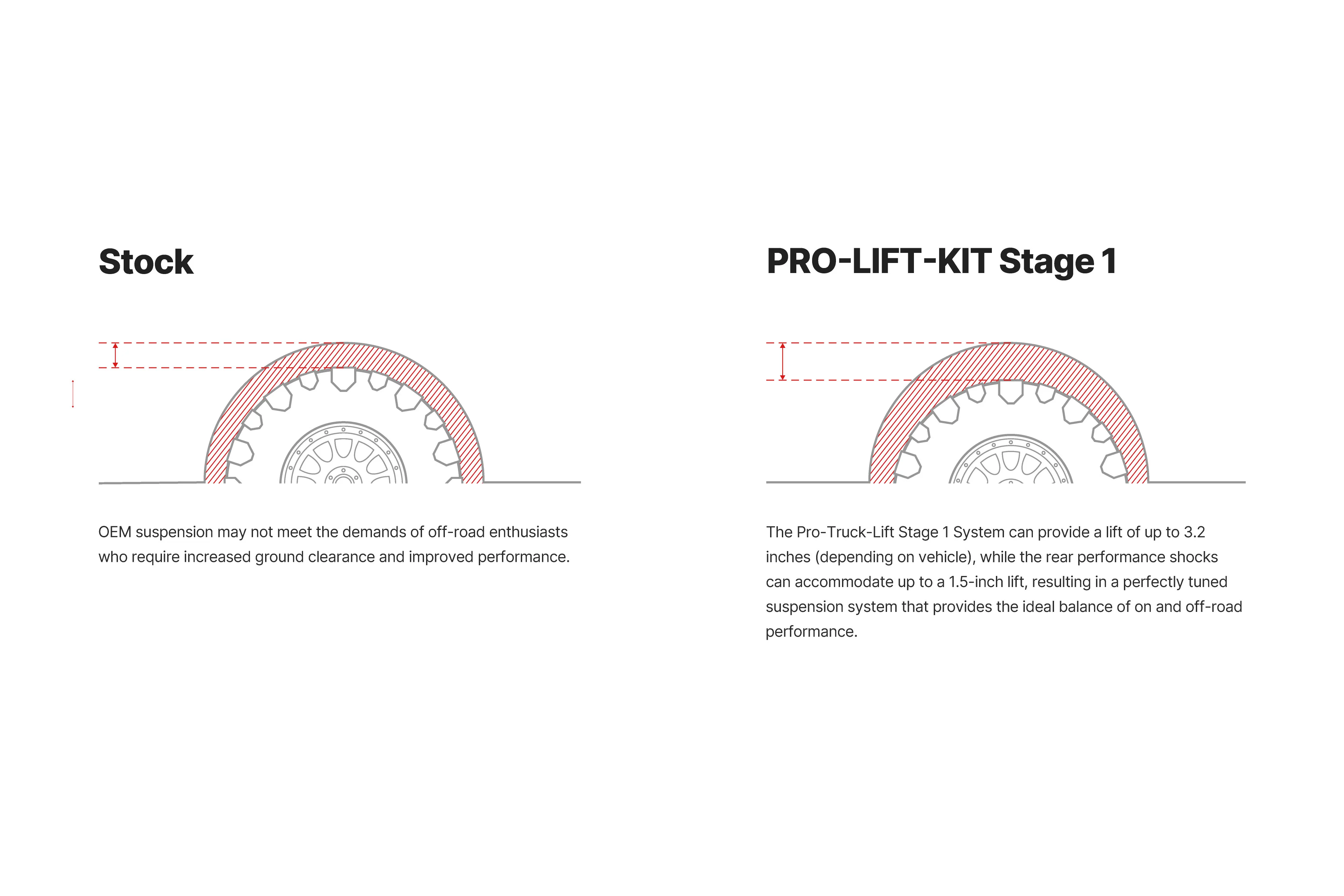

• STAGE 1
  • Ride Height: +2.0" Front | +0" Rear
  • Set of 4 Shocks + 2 Front Springs. Includes Pro-Truck Lift Springs and Pro-Truck Sport Shocks. Vehicles equipped with Max Tow Package will not be level on the bottom clip

• STAGE 2
  • Ride Height: +0-2.0" Front | +0" Rear
  • Pair of Front Pro-Truck-Coilover 2.0's + Rear Sport Shocks
  • Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
  • Preload is set to recommended height, additional height will result in less droop travel and harsher ride.

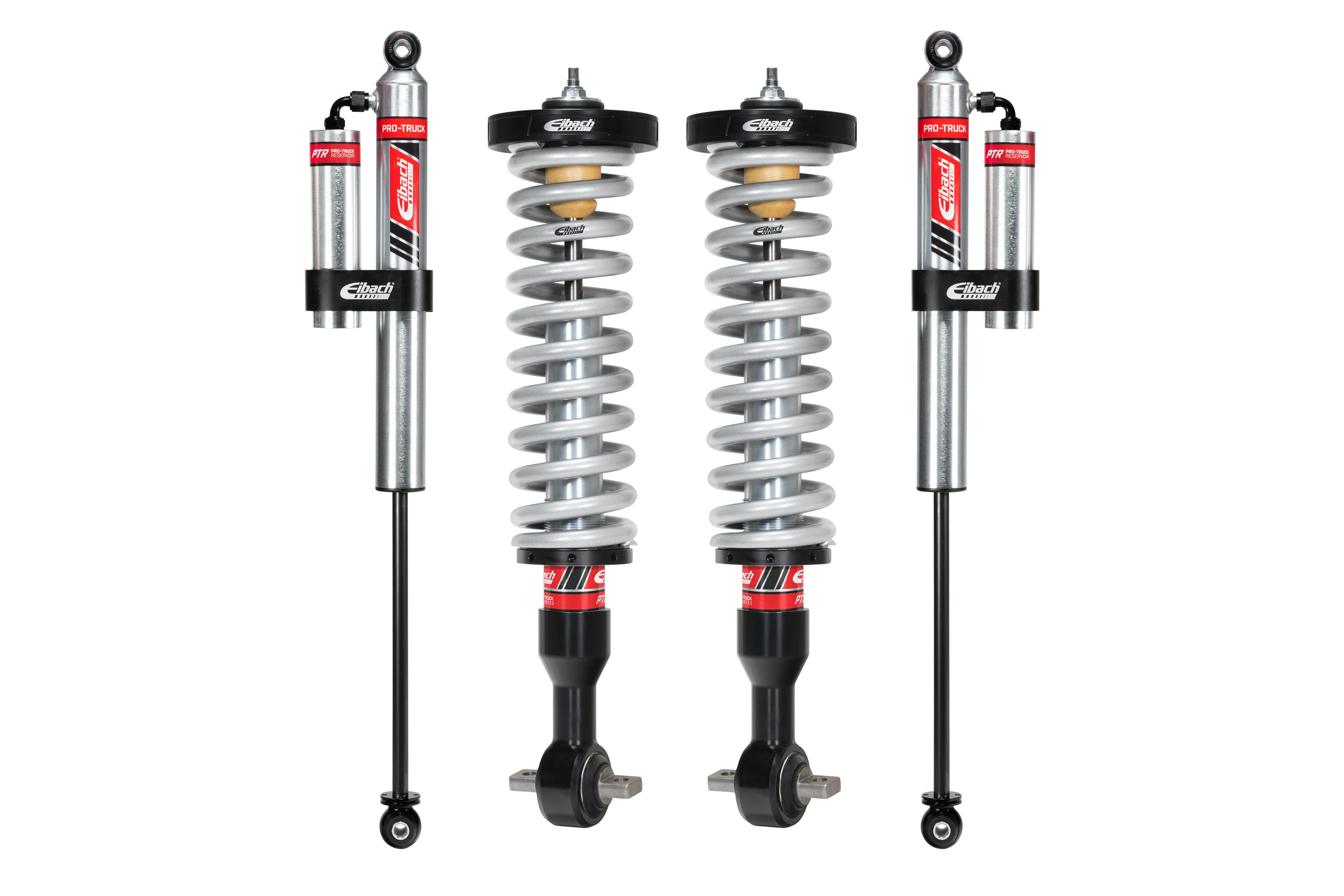

• STAGE 2R
  • Ride Height: +0-2.0" Front | +0" Rear
  • Pair of Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks
  • Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
  • Preload is set to recommended height, additional height will result in less droop travel and harsher ride.

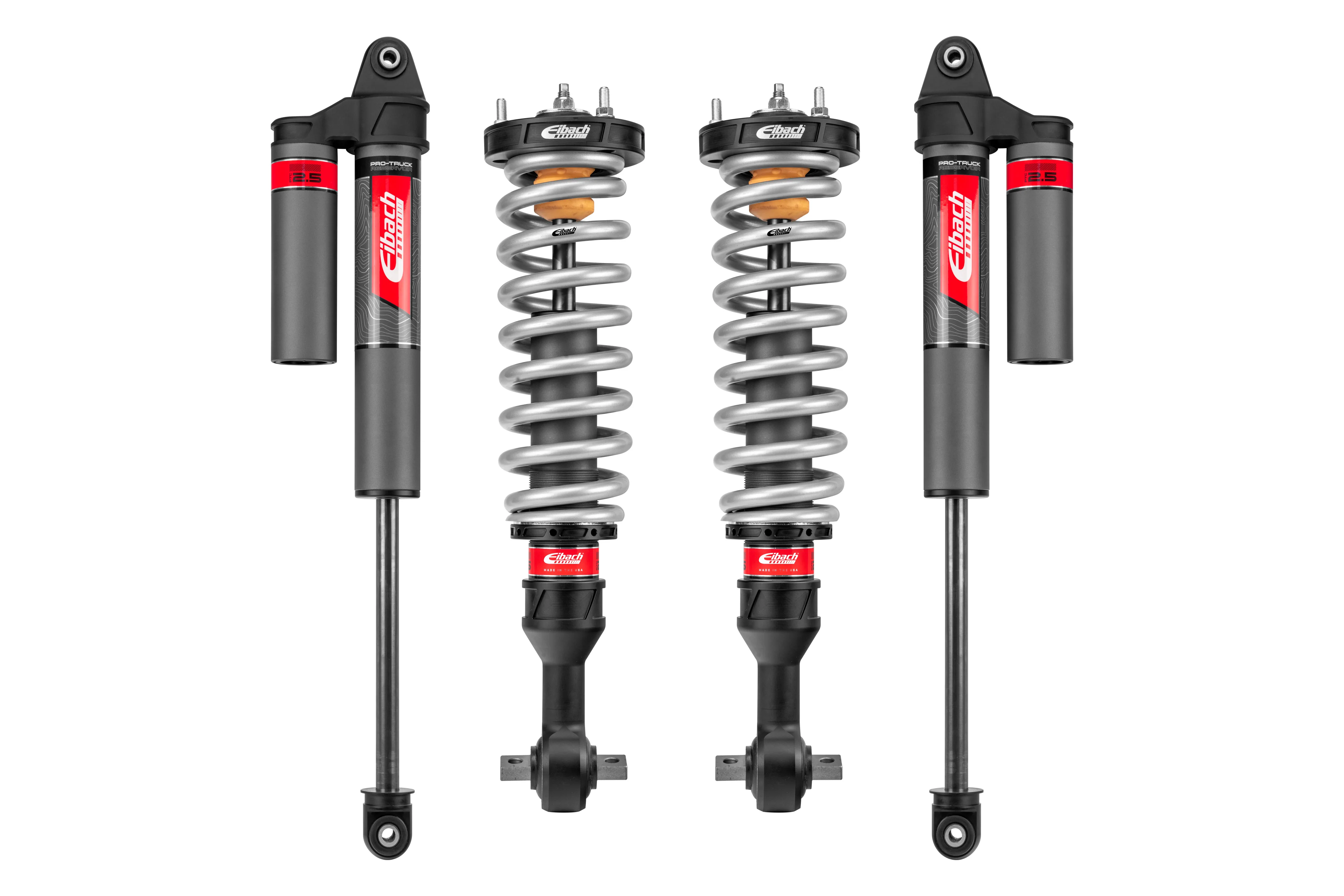

• STAGE 3R
  • Ride Height: +0-2" Front | +0" Rear
  • Pair of Pro-Truck-Coilover 2.5's + Pro-Truck Reservoir 2.5 Rear Shocks
  • Preload is set to recommended height, additional height will result in less droop travel and harsher ride. Eibach 2.5" rear reservoir shock has extended travel to work with the height range listed.
  • Height Adjustable Front Coilover and External Reservoir Rear Shocks for Maximum Off-Road Performance

• Front Springs Only - Set of 2 Springs
  • Ride Height: +2.7" Front
  • Front Springs Only. Must be used with Eibach Pro-Truck Sport Front Shocks.
  • Anodized 6061-T6 Billet Aluminum Coilover Mounts, 56mm Piston Monotube
  • Design with Nitrogen Filled multi-stage Zinc/Cerakote finish.
    Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
  • Increased Ground Clearance.

  • More Fender Clearance for Larger Wheels and Tires.

  • Precision Engineered for Improved Off-Road Capability.

  • Excellent On-Road Stability and Handling.

  • Made in U.S.A.
• Note:
• Stage kits are covered by a two-year warranty.
• Springs-only kits are covered by a five-year warranty.

Product Description

Built upon decades of offroad racing victory, the Eibach PRO-TRUCK-LIFT combines a series of Pro-Lift-Kit springs and Pro-Truck Sport shocks to create a perfectly tuned suspension system engineered for both, on and off-road performance. Each PRO-TRUCK-LIFT is designed and tested to deliver maximum ride height without compromising the integrity of factory bushings, ball joints and other components.

For vehicles with front coil-over-shock suspension, height adjustable spring perch grooves allow for fine tuning of the vehicles ride height. As winches, armor and accessories are added, this system maintains proper ride height allowing for more clearance and full use of available shock travel.

With the same spring technology found in our ERO offroad race springs, the block resistant Pro-lift-kit springs can be taken to the limit mile after mile ensuring consistent performance and ride height. Matched with our heavy duty Pro-Truck Sport shock system, this combination is capable of handling anything in its path. Precision shock valving allows compliance over large obstacles and control through rough terrain while also improving on road comfort and performance.
