Radium Engineering Fuel Hanger Feed Kit Nissan R35 GT-R - Microglass or Stainless Filter
Fitment Information
- Nissan R35 GT-R

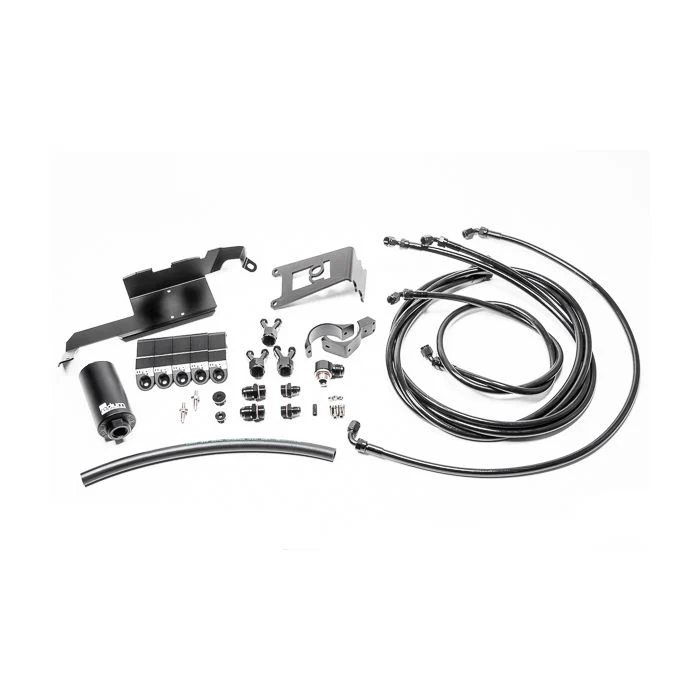

What Includes
- Check Valve Filter (-03 Stainless, -05 Microglass)
- 10AN ORB to 10AN Male Low Profile Fitting
- 10AN to 6AN Y-Adapter Fittings (x3)
- Fuel Line Retaining Mounts (x5)
- R35 Filter Heat Shield Bracket
- 60mm 2-Piece Filter Clamp
- 6AN PTFE Fuel Hoses (x4)
- Stainless Steel Hardware
Product Description
If installing a Radium in-tank fuel hanger with high-flow aftermarket pumps, the stock R35 fuel lines may not be sufficient. The fuel hanger feed kits include everything required to connect all 20-055X-0X Radium fuel hangers directly to Radium fuel rails. It comes with new PTFE feed lines and re-uses the factory feed line as the return for the regulator.
When selecting a feed kit, first choose the filter element type. Stainless steel elements can be cleaned and re-used, while microglass provides better filtration efficiency, but cannot be re-used. The fuel filters provided in the 20-0851-03 and 20-0851-05 feed kits feature an integrated check valve to hold fuel pressure after the engine is shut OFF.
Because fitment is extremely tight, the -10AN "PUMPS" outlet is first split into two -6AN feed lines. The dual 6AN PTFE lines run parallel under the vehicle and are secured using billet aluminum retainers with OEM hardware.

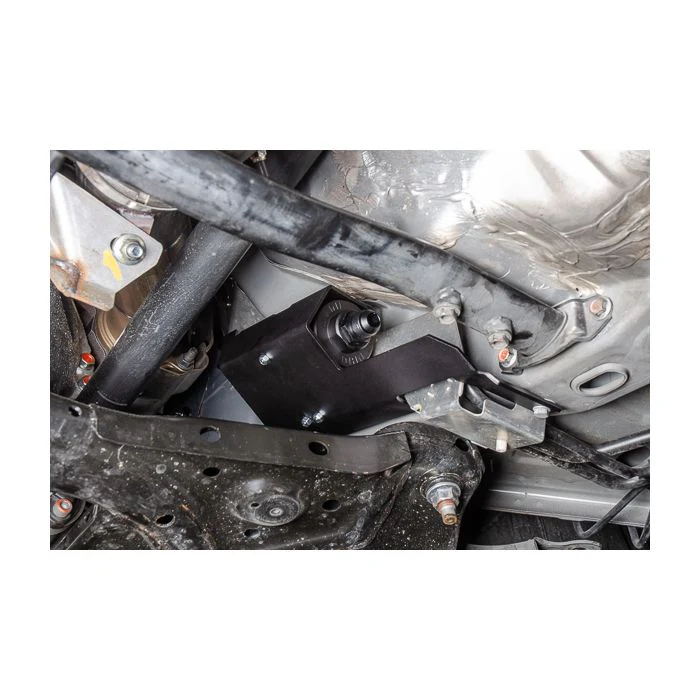

The dual -6AN PTFE lines run through a serviceable fuel filter that secures using a GT-R specific heat shield.
Depending on the kit selected (-03 or -05), the fuel filter will be assembled with the appropriate elements.

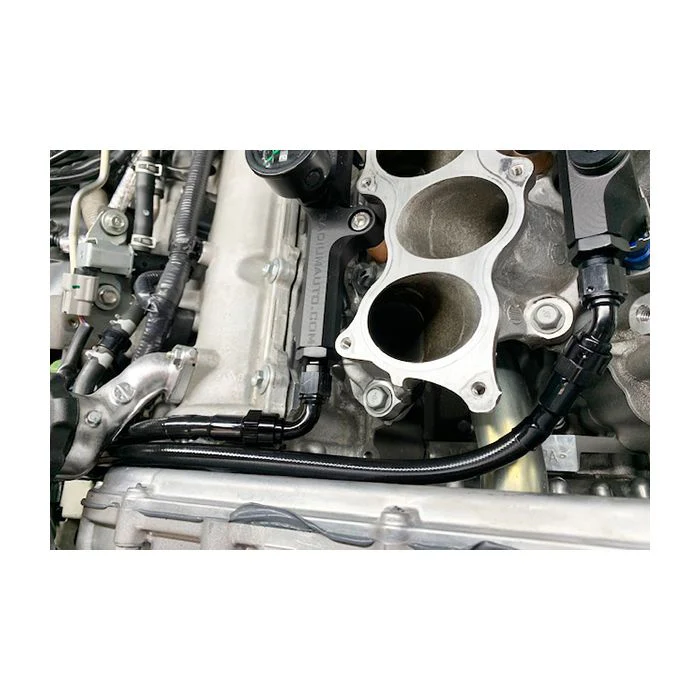

The 2 lines split and are ready to be installed into the 6AN male fittings on the front ports of the fuel rails (not included).
NOTE: The fuel hanger feed kit is compatible in LHD (left hand drive) vehicles only.
