Radium Engineering Fuel Hanger Toyota Chaser / Mark II / Cresta - 20-0940
Fitment Information
-
Compatible with the following fuel pumps:
-
Walbro F90000267
-
Walbro F90000274
-
Walbro F90000285
-
Walbro F90000295
-
Walbro GSS342
-
AEM 50-1000
-
AEM 50-1200
-
Bosch BR540
-
Deatschwerks DW400
-
Deatschwerks DW440 (brushless)
-
Protec 11928 (brushless)
-
Fuelab 49614 (brushless)
- Ti Automotive E5LM (brushless)
- Note: This system supports 1 or 2 aftermarket fuel pumps (sold separately)
-
Walbro F90000267
-
Compatible with the following vehicle models:
- Toyota Chaser (X90)
- Toyota Chaser (X100)
- Toyota Mark II (X90)
- Toyota Mark II (X100)
- Toyota Cresta (X90)
- Toyota Cresta (X100)
Specifications
- Drop-In Installation
- Dual Pump Capable with Popular Pumps
- Brushless Fuel Pump Compatibility
- High Current Electrical Hardware
- Anodized Aluminum Construction
- Gasoline, Methanol, and Ethanol Compliant
- Fuel Resistant Tubing and Wiring
- Stainless Steel Hardware
NOTE: Pumps Not Included
Product Description

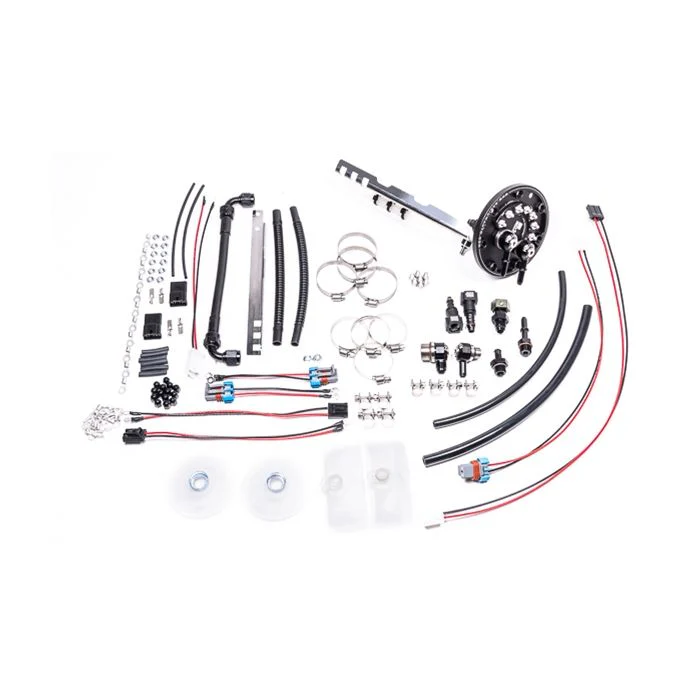

The Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains.
PLUMBING
The feed port is tapped with 7/8-14 female threads (10AN ORB). The return port is tapped with 9/16-18 female threads (6AN ORB). Multiple adapter fittings are provided for connecting back to the OEM fuel lines.
ELECTRICAL
The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels.
Non conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Electrical hardware is included for the fuel pump(s). Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE. Relay kits, such as 17-0031, are recommended to drive these new internal fuel pump(s).
