Radium Engineering Fuel Pressure Regulator - w/ 3.0Bar Bosch Top/ 4.0Bar Bosch Top/ No Top

Fitment Information

• This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator inserts. These Bosch units are found in many applications, including:

  • Audi 1.8L Turbo

  • Ford Falcon BA, BF, FG XR6 Turbo

  • Ford Territory Turbo

  • FPV F6 Typhoon Turbo

  • Volkswagen 1.8L Turbo


Specifications

• This product is not recommended for fuel pumps with more than 255 LPH (at 3 Bar) rated flow.

20-0014

• If a regulator top is not needed (already have one from another source), select Radium 20-0014. This option includes everything needed with the exception of the regulator top.

20-0010-00 and 20-0010-01

• These come assembled with the Bosch regulator unit installed in the housing.

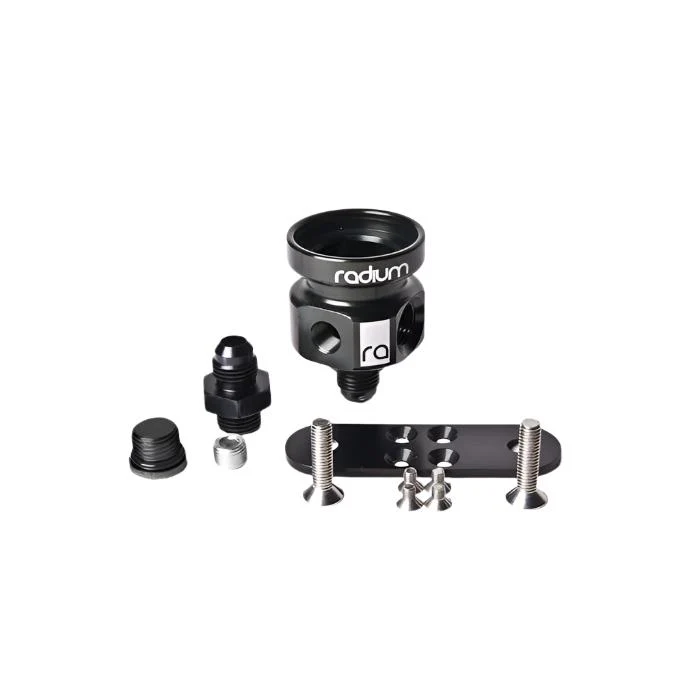

What's Included?

• Billet 6061 Aluminum Housing

• 6AN Male Adapter Fitting

• 6AN ORB Plug Fitting

• 1/8-27 NPT Port Plug

• Integrated -6AN Male Return Port

• Stainless Steel Mounting Hardware

• Stainless Steel Snap Retaining Ring

• Anodized Aluminum Mounting Bracket

Product Description

Alternatively, Radium offers two GENUINE Bosch regulator tops: 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.

The compact Radium Engineering billet aluminum FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.

NOTE: The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used. These FPRs are tested using a common Walbro 255lph pump. If a higher flowing pump is used, the minimum pressure ratings may be higher than advertised. For applications with more pump flow, consider a high flow fuel pressure regulator.
